3.0AMP Gold Plated Round Pin Header Connector 1.27mm Pitch straight

3.0AMP Gold Plated Round Pin Header Connector 1.27mm Pitch straight

• Pin Header, a type of connector. This connector is widely used in electronic, electrical, instrument in the PCB circuit board, its role is in the circuit is blocked or isolated between the circuit, play a bridge function, take up the task of current or signal transmission. It is usually used with the busbar to form a board-to-board connection. Or matching with the electronic wiring harness terminal, forming a board-to-wire connection; Can also be used independently for board to board connection.

  Because the specifications required by different products are not the same, so the row of needles also have a variety of model specifications, according to the standard classification of the electronic industry row of needles connector: according to the spacing can be roughly divided into 2.54mm, 2.00mm, 1.27mm, 1.00mm, 0.8mm five categories according to the number of rows of single row of needles, double row of needles, three rows of needles; According to the packaging rules with SMT (horizontal paste/vertical paste), plug-in DIP (straight insert/bend insert).

• Because the specifications required by different products are not the same, there are also a variety of pin specifications, according to the standard classification of pin connectors in the electronics industry:

  According to the spacing can be roughly divided into 2.54mm, 2.00mm, 1.27mm, 1.00mm, 0.8mm five categories according to the number of rows have a single row of needles, double row of needles, three rows of needles; According to the packaging rules with SMT(horizontal paste/vertical paste), plug-in DIP(direct insert/bend insert); According to the installation mode, 180° is represented by S, 90° by W, and SMT by T.

• Row needles applied

  ● Data processing ● Computer ● program control equipment ● electronic measurement equipment ● Automatic control ● Automation ● Communication

  The cross section of the rectangular pin is 0.8×1.6mm, and the load current is 7.5a. Jack has at least two independent shrapnel, four contact points, jack structure can prevent misinsertion. 254/I series square pin section is 0.64×0.64mm. The above two pins are designed with blunt edges for high frequency applications. Gold plated pinhole contact parts, corrosion resistance, low contact resistance and high reliability.

Gold Plated Round Pin Header Connector

1.27mm Round Pin Header Connector

3.0AMP PCB Board connector

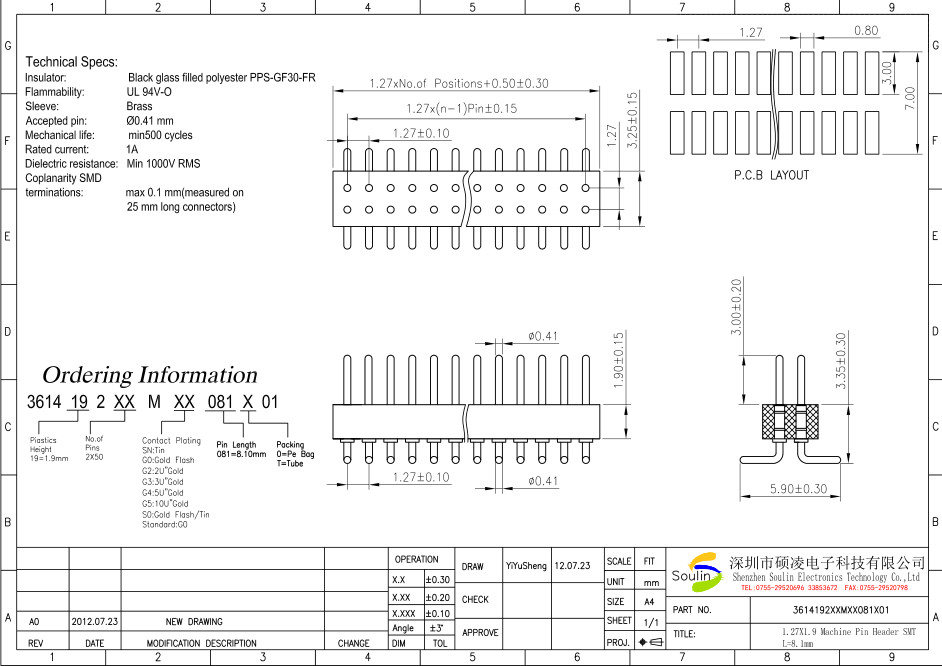

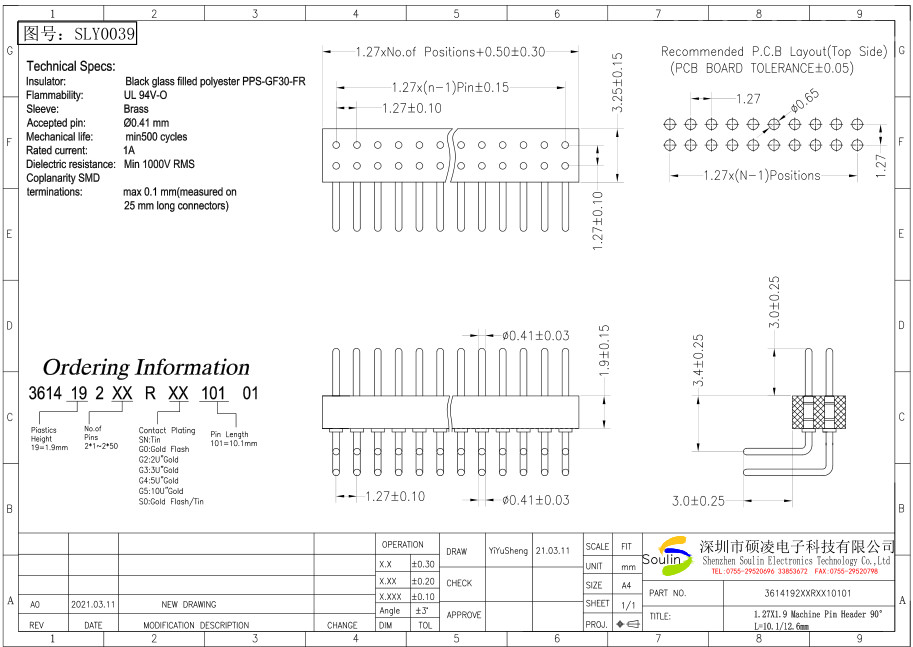

3.0AMP Gold Plated Round Pin Header Connector 1.27mm Pitch straight Images
