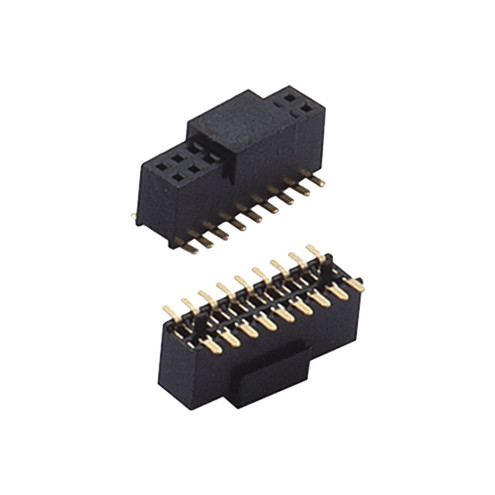

Customized connector 2.54mm dual row smt type gold flash for pcb board female header connector
product introduction
Female Header is a type of connector.
This connector is widely used in electronic, electrical, instrument in the PCB circuit board, its role is in the circuit is blocked or isolated between the circuit, play a bridge function, take up the task of current or signal transmission.
Usually used with row pin matching, forming a board-to-board connection; Or matching with the electronic wiring harness terminal, forming a board-to-wire connection; Can also be used independently for board to board connection.
Because the specifications required by different products are not the same, there are also a variety of specifications.
is widely used in vehicle-mounted monitoring, instrumentation, Internet of things, new energy vehicles, LED display field, POS machine and scanner, lighting industry, security industry, electronic toys, household appliances, etc., providing the most reliable connection board to board and wire to board.
product specifications
pitch can be roughly divided into: 0.8mm, 1.00mm, 1.27mm, 1.5mm, 2.00mm, 2.2mm, 2.54mm, 3.0mm, 3.5mm, 3.08mm, 5.08mm
The number of rows can be roughly divided into: single row, double row, three rows, four rows, etc;
The height can be roughly: H2.0, H2.2, H2.8, H3.4, H3.5 H4.3, H4.6, H4.9, H5.0, H5.7, H6.35, H7.1, H7.2, H8.5, H10.0, H11.0, etc.
type:SMD SMT (horizontal/vertical), DIP (straight/bent), plywood, etc. (According to the installation method: 180 degrees with S, 90 degrees with R, SMT with T)
High temperature resistant insulating plastic (UL94V-0) material: PBT(only meet the wave soldering process).
High temperature resistant insulating plastic (UL94V-0) material: PA6T, PA9T, LCP(can meet the wave soldering, reflow welding two kinds of process).
The color of insulating plastic can be divided into black, white, blue, natural color and so on.
Hardware contact terminal material: brass (C2680) or phosphor copper (C5191), leather copper.
Hardware contact terminal surface treatment: nickel plating first in gold or silver plating, bright tin plating, wuxi plating, semi-gold tin plating, etc.
Product Properties
| plastic material | PBT/PA6T/PA9T/LCP+30%G.F |
| Color | Black,Special |
| Insrlator Material | Polyester (UL94V-0) |
| Contact Material | Brass |
| Contact Plating | Au Or Sn over 40u”Ni |
| Current Rating | 3.0Amps |
| withstanding Voltage | AC1000V min/Minute |
| Contact Resistance | 20mΩ MAX |
| Operation Temperature | -40℃ to +105℃ |
| Insulation Resistance | 1000MΩ Min |

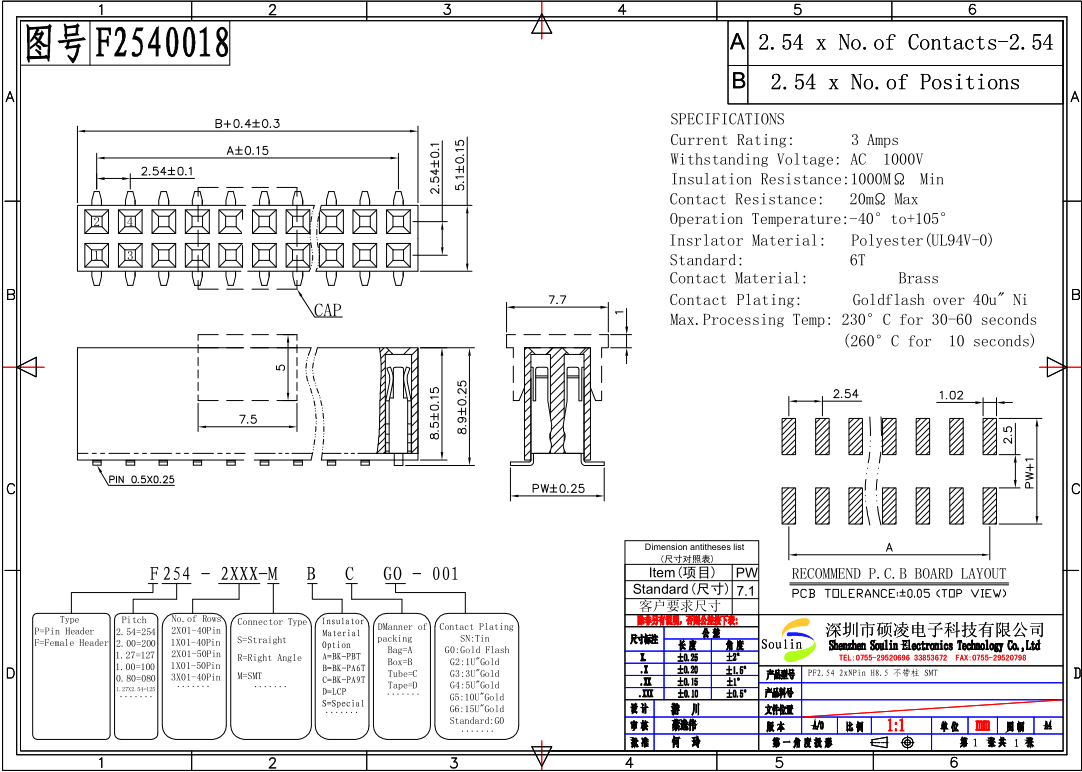

Product drawings
Company information
Shenzhen soulin Electronic Technology Co., Ltd., founded in September 2009, is
located in Guangming District, Shenzhen. It specializes in the R & D and
manufacturing of connectors. It has more than 300 employees and a plant area of
more than 14000 square meters. It is divided into hardware department, injection
molding department, assembly department and electroplating Department. It has 36
precision high-speed punches, 32 precision injection molding machines, and more than
180 automatic product assembly machines.
FAQ
1)Your inquiry will be answered within 24hours.
2)We provide OEM, ODM service, product details can be made according to your requirements.
3)Excellent pre-sales and after-sales service.
4)Factory and trade integration, 13 years export experience
5)One-stop shopping
6)Competitive price
7)Prompt delivery
Product Tags:
|
|
Customized 2.54mm Dual Row SMT Header Connector Gold Flash For Pcb Board Images
|
